HZS50 Compact Concrete Batching Plant
Efficient 50m³/h concrete production system for ready-mix suppliers, infrastructure projects and commercial construction.
Request Technical Proposal
Stronger Output for Professional Concrete Production

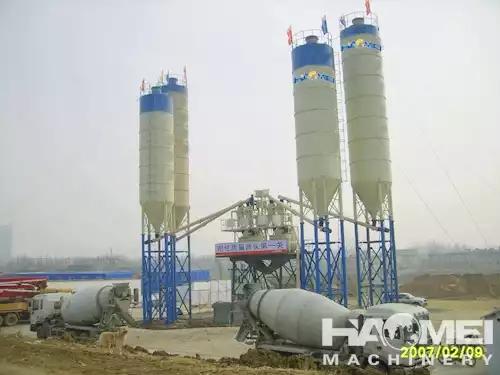

The HZS50 compact concrete batching plant is designed for customers requiring stable production capacity with efficient site layout.
It is suitable for ready-mix concrete supply, road construction, building projects and long-term infrastructure works.
Specification of Concrete Batching Plant
| Item | Specification | |
|---|---|---|
| Model | HZS50 | |
| Specification | Unit | Value |
| Productivity | m3/h | 50 |
| Capacity of Mixer | m3 | 1 |
| Mixer Power | kw | 37 |
| Discharge Height | m | 3.8(for customers choice) |
| Aggregate Bin | Quantity | 3 |
| Aggregate Bin Capacity | m3 | 1.6 |
| Max. Weighing Value of aggregate | kg | 1000 |
| Max. Weighing Value of cement | kg | 800 |
| Max. Weighing Value of water | kg | 350 |
| Max. Weighing Value of additive | kg | 30 |
| Aggregate Measuring Accuracy | % | 2 |
| Water Measuring Accuracy | % | 1 |
| Cement Measuring Accuracy | % | 1 |
| Additive Measuring Accuracy | % | 1 |
| Cement Silo | _ | Optional |
| Cement Screw Conveyor | _ | Optional |
| Cement Silo Capicity | _ | Optional |
| Control Mode | _ | Auto/Semi control |
Higher Capacity
Suitable for customers with stronger daily production requirements.
Stable Quality
Efficient batching and mixing for consistent concrete output.
Configurable Layout
Aggregate storage, silo capacity and feeding methods can be configured.
Applications
- Ready-mix concrete plants
- Commercial building projects
- Road and bridge construction
- Infrastructure projects
- Medium precast yards
Customer Case
A concrete supplier used an HZS50 compact batching plant to serve local building contractors and increase supply capacity while maintaining stable concrete quality.
FAQ
What is the capacity of the HZS50 compact concrete batching plant?
The HZS50 compact concrete batching plant has a theoretical capacity of 50m³/h and is suitable for ready-mix concrete, infrastructure and commercial construction projects.
Is HZS50 suitable for ready-mix concrete business?
Yes, it is suitable for small and medium ready-mix concrete supply.
Can it use belt conveyor feeding?
Yes, belt conveyor feeding can be considered according to project needs.
Can I request a layout drawing?
Yes. Please provide your site size and production requirements.
Need a 50m³/h Concrete Batching Plant?
Request a technical proposal from Haomei Machinery.
Product Comparison
| Model | Type | Capacity | Best For |
|---|---|---|---|
| HZS25 | Stationary | 25 m³/h | Small construction and precast |
| HZS35 | Stationary | 35 m³/h | Medium projects and local supply |
| HZS50 | Stationary | 50 m³/h | Ready-mix and infrastructure |
| YHZS25 | Mobile | 25 m³/h | Temporary and remote sites |
| YHZS35 | Mobile | 35 m³/h | Road and bridge projects |
| Skip Hoist Plant | Stationary | 25–50 m³/h | Limited-space job sites |
